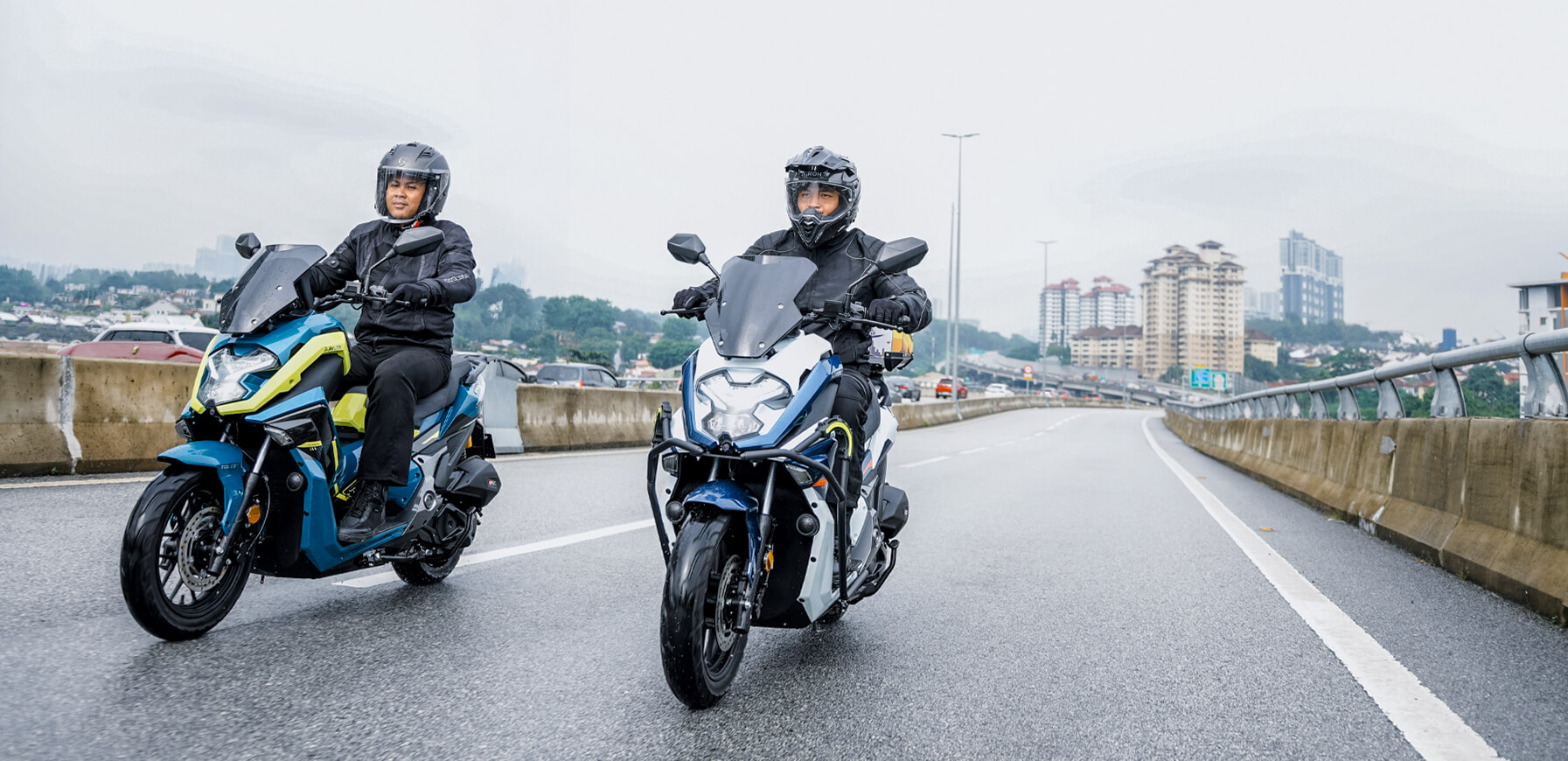

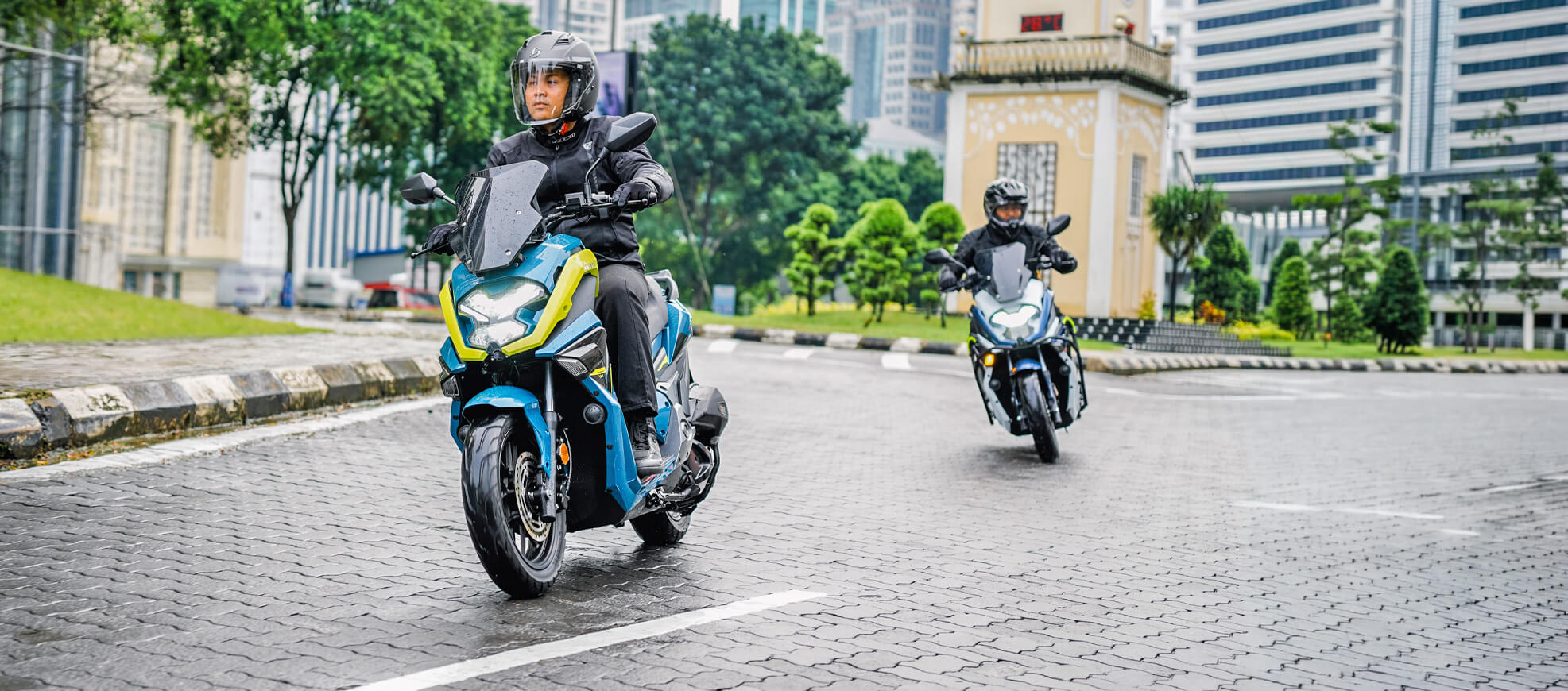

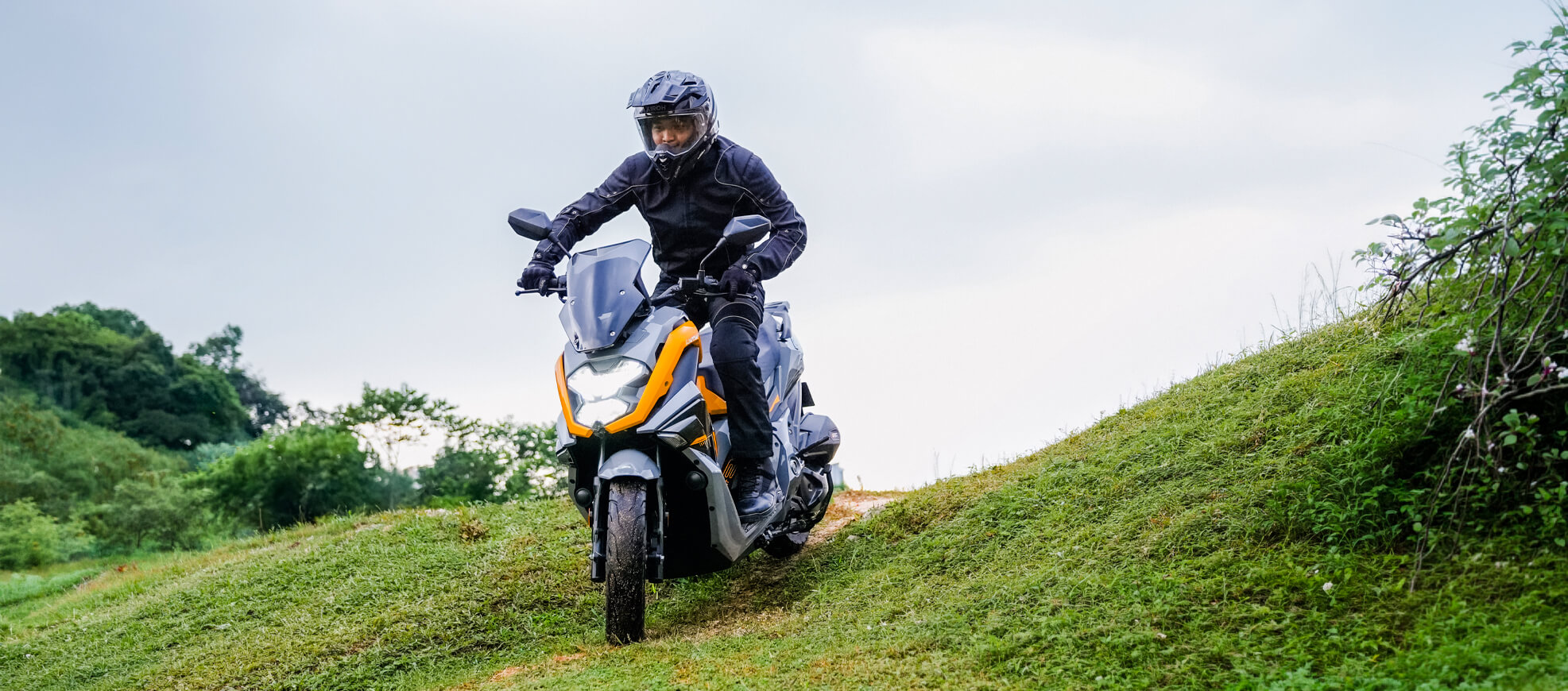

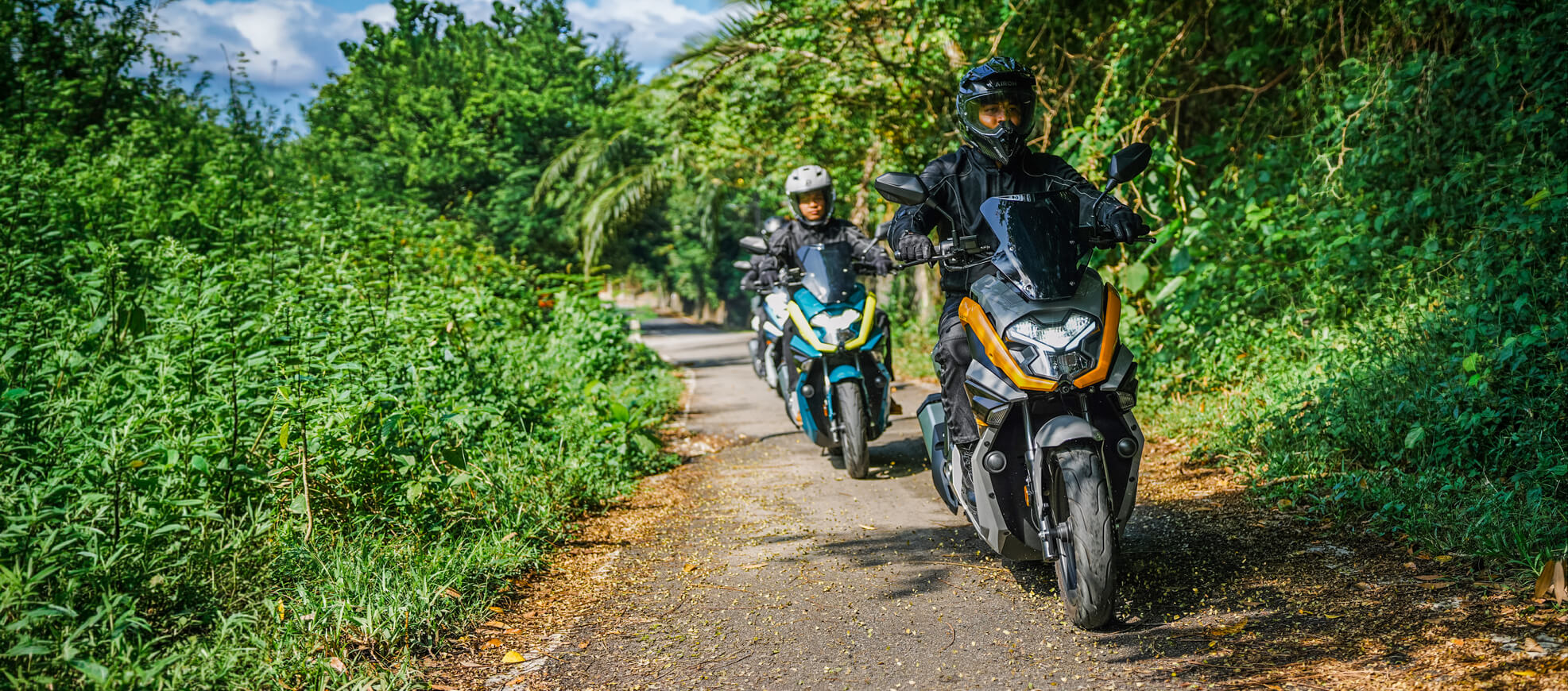

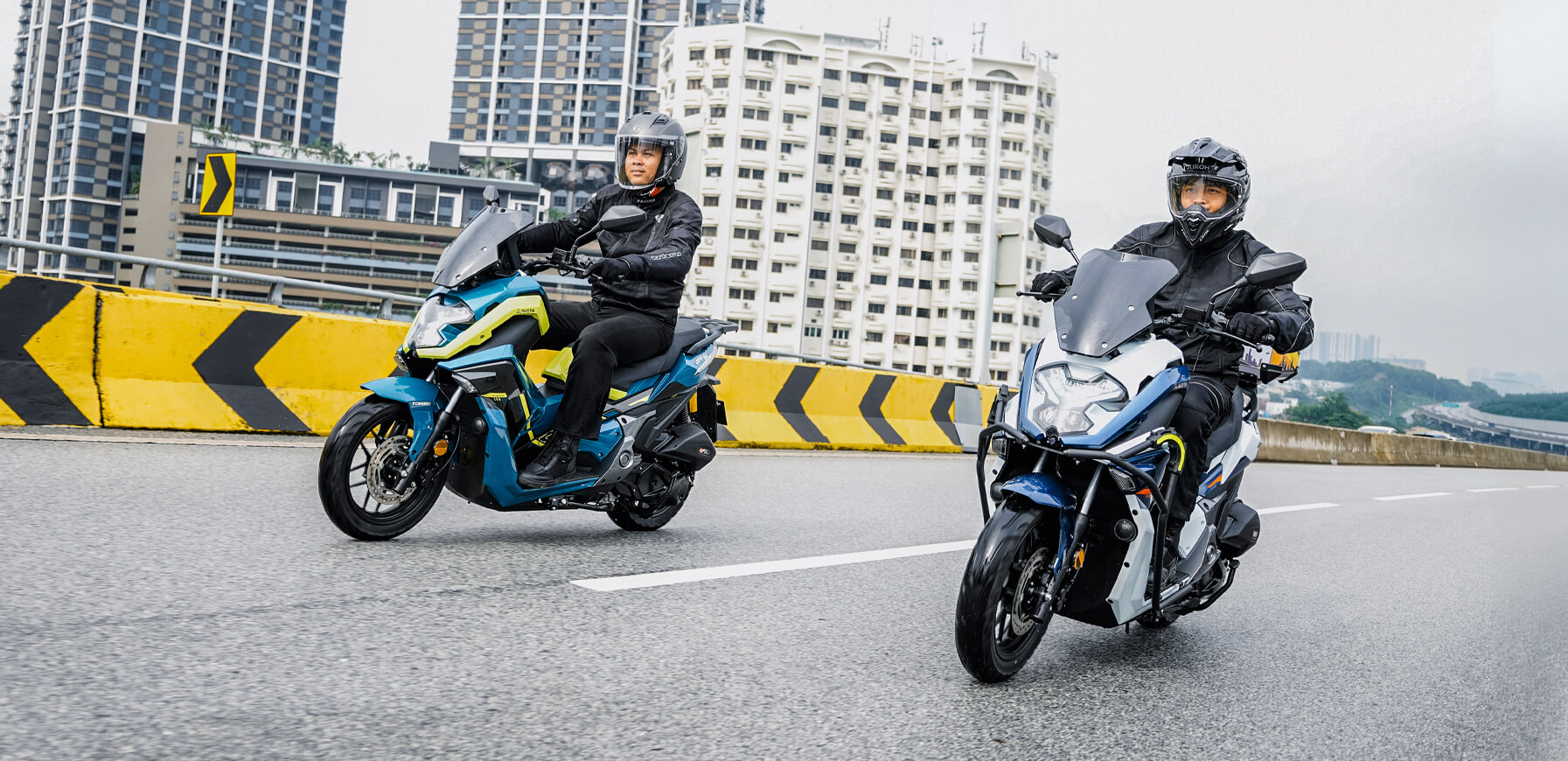

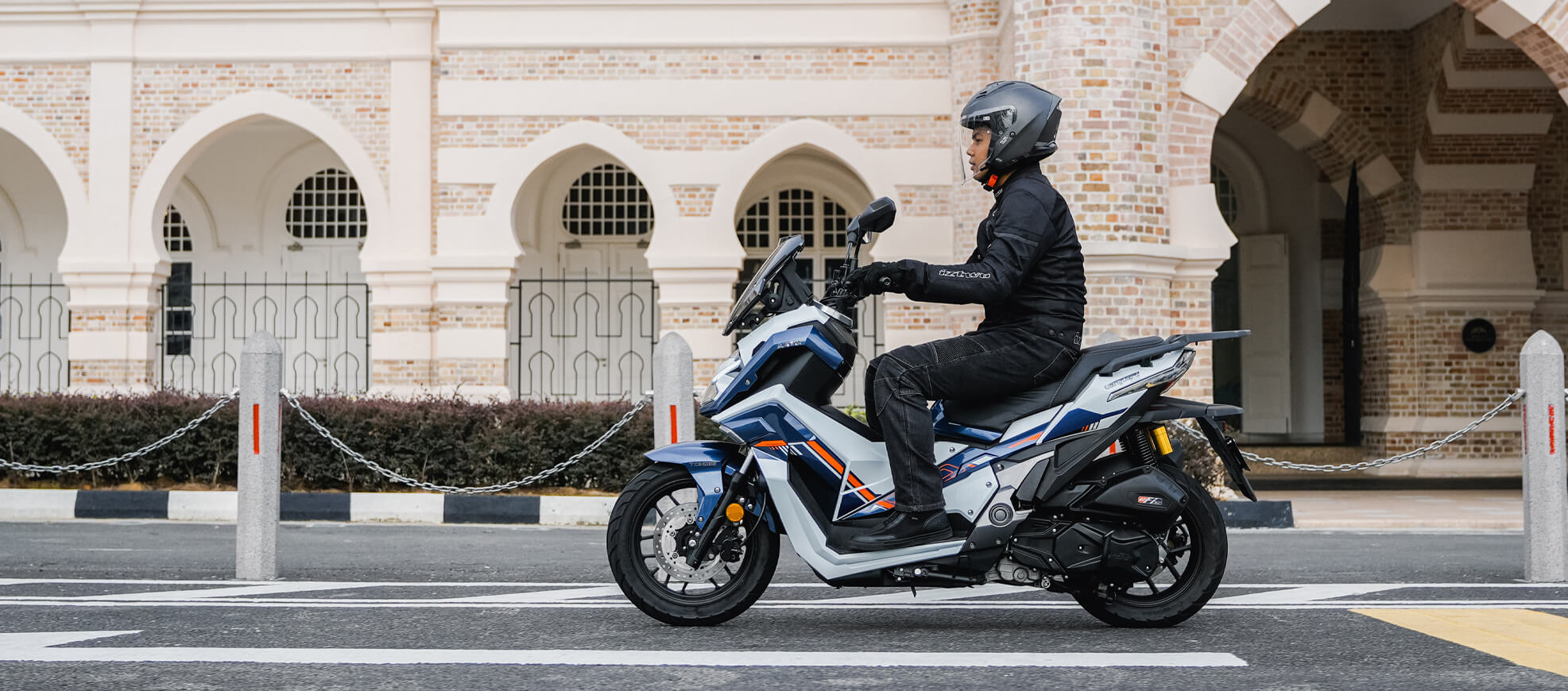

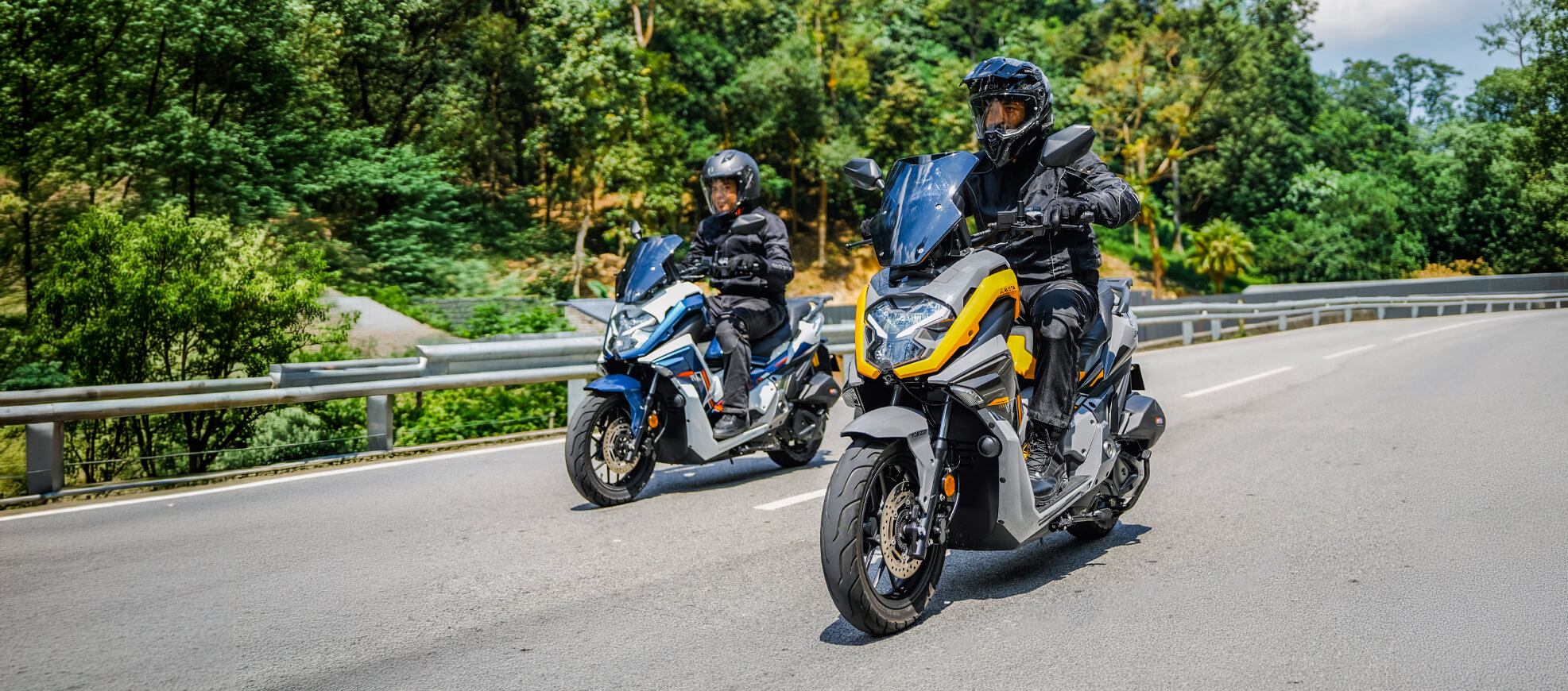

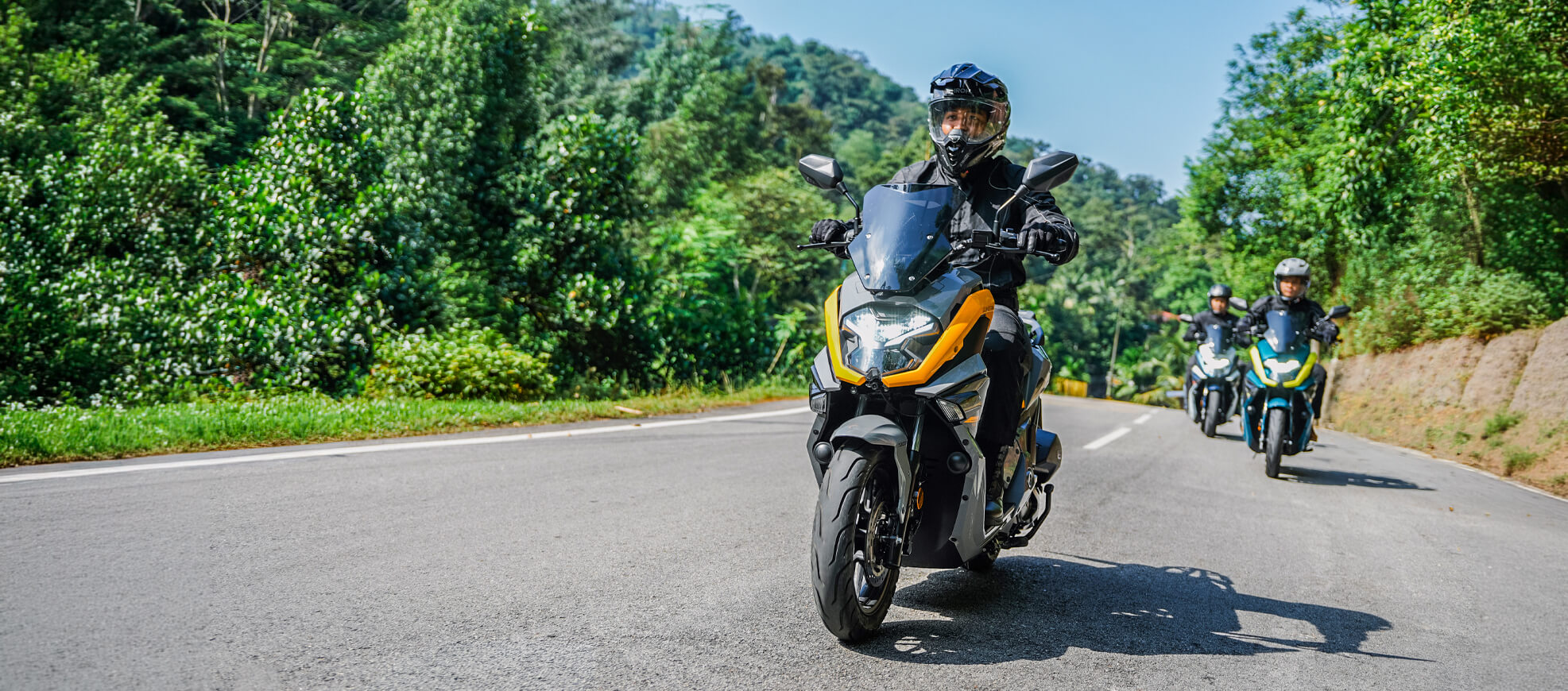

Vanguard 180

When Adventure Meets Touring

The Vanguard 180 blends smart technology with confident performance, built for riders who want more from every ride.

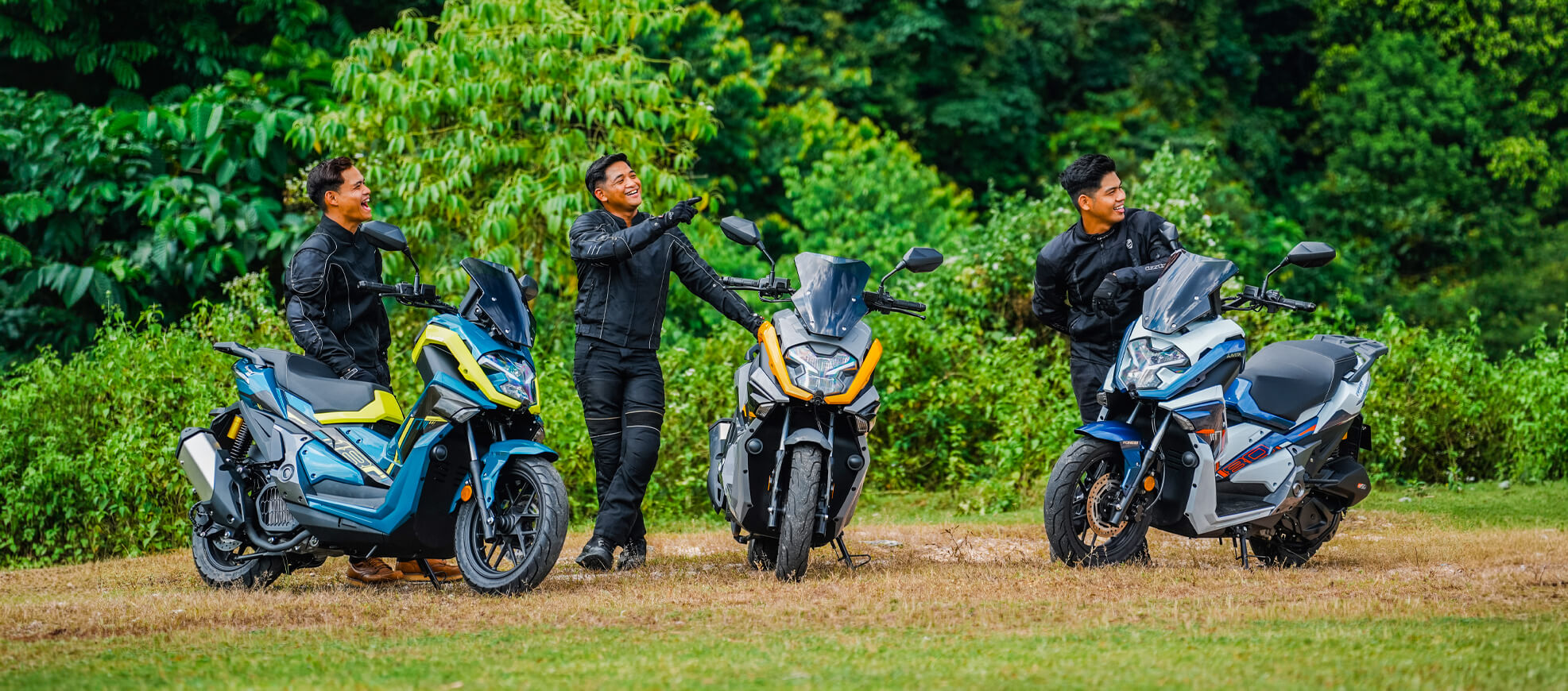

With rugged capability and thoughtful comfort features, it’s equally at home on long touring days or rougher roads, available in three striking colourways.

Download Brochure Owner Manual
Vanguard 180
Neon Terrain
Colour
* Actual colors may vary from the pictures.

Features

Specifications

Engine

Engine Type SOHC, 4-Stroke, 4-Valve, Liquid-Cooled
Engine Displacement 174 cc
Bore x Stroke 61.0 mm × 59.6 mm
Maximum Power 13.6 kW @ 8,500 rpm
Maximum Torque 17.2 Nm @ 6,500 rpm
Compression Ratio 11.5 : 1
Engine Management BOSCH EFI
Transmission Automatic CVT, Belt Drive
Engine Type SOHC, 4-Stroke, 4-Valve, Liquid-Cooled
Engine Displacement 174 cc
Bore x Stroke 61.0 mm × 59.6 mm
Maximum Power 13.6 kW @ 8,500 rpm
Maximum Torque 17.2 Nm @ 6,500 rpm
Compression Ratio 11.5 : 1
Engine Management BOSCH EFI
Transmission Automatic CVT, Belt Drive

Chassis

Front Suspension Telescopic Fork
Rear Suspension Adjustable Dual Gas-Charged Shock Absorber
Front Brake Single Disc, 2-Piston Caliper, ABS
Rear Brake Single Disc, ABS + TCS
Front Tyre 100/80-14
Rear Tyre 130/70-13

Dimensions

Length x Width x Height 1970 mm × 760 mm × 1280 mm
Seat Height 780 mm
Wheelbase 1375 mm
Ground Clearance 140 mm
Curb Weight 142 kg
Fuel Tank Capacity 10.5 L

Others

Keyless Smart Keyless
Screen Display 7” TFT Touchscreen Display with Video Playback
Dashcam Front Dash Camera
Charging Port USB Type-A & USB Type-C

Description

The Vanguard 180 blends smart technology with confident performance, built for riders who want more from every ride.

With rugged capability and thoughtful comfort features, it’s equally at home on long touring days or rougher roads, available in three striking colourways.
