Ranger Max Explorer 135

Adventure Without Limits

Built for riders ready to explore beyond the everyday. It’s a bike designed for those who want to break from the ordinary commute, combining an adventure-ready build with the kind of versatility that makes every ride feel like a new route worth taking.

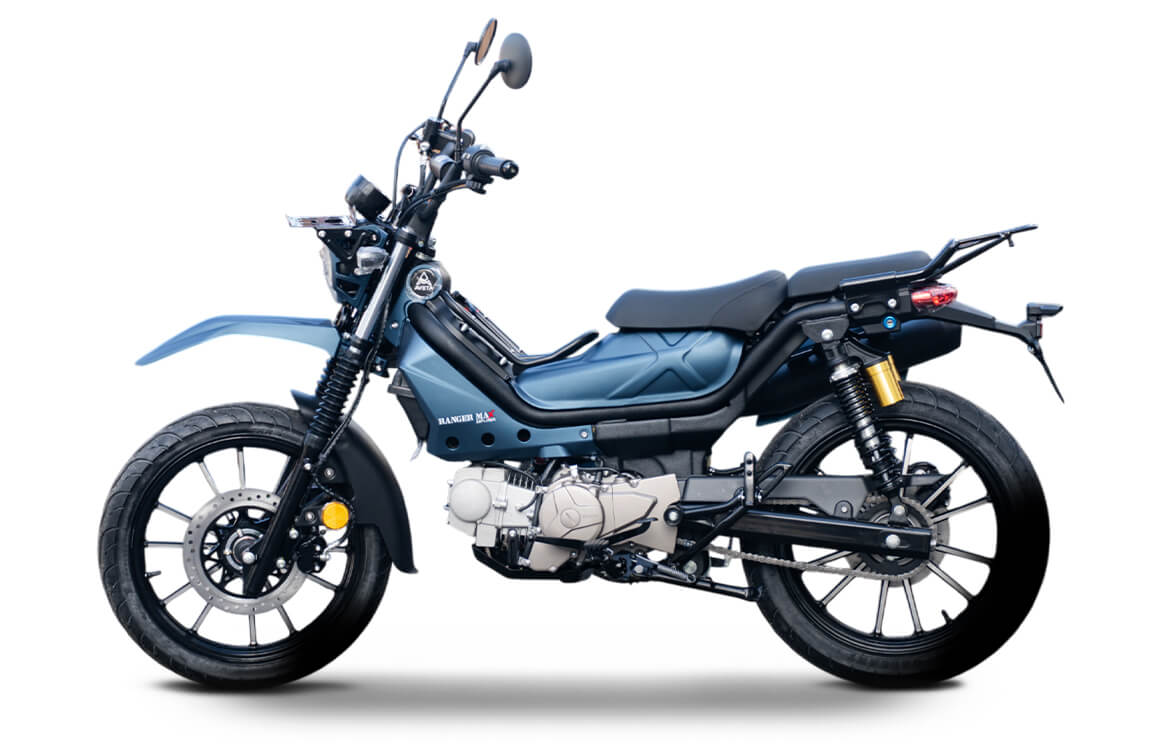

Ranger Max Explorer 135
Storm Blue
Colour
* Actual colors may vary from the pictures.

Features

Specifications

Engine

Engine Type Air-Cooled, 4-Stroke, SOHC, Equipped with Balancer Shaft
Engine Displacement 127 cc
Bore x Stroke 54 mm x 55.5 mm
Compression Ratio 9.1:1
Maximum Power 7.5 kW / 8000 rpm
Maximum Torque 10.5 Nm / 5500 rpm
Engine Starting System Kick Starter & Electric
Lubrication System Wet Sump
Engine Oil Capacity 1.2 L
Fuel Supply System Carburetor
Ignition System CDI

Chassis

Frame Type Double T-Bone Frame
Front Suspension Telescopic Fork
Rear Suspension Twin Shock with Gas Reservoir Tank
Front Tyre STD 2.75-18 (Tube)    SE 80/90-17 (Tubeless)
Rear Tyre STD 3.5-16 (Tube)    SE 90/90-17 (Tubeless)
Front Brake Disc Brake
Rear Brake Disc Brake

Dimensions

Length x Width x Height 1920 mm x 720 mm x 1150 mm
Wheelbase 1280 mm
Minimum Ground Clearance 190 mm
Seat Height 770 mm
Weight 115 kg
Fuel Tank Capacity 8.5 L

Others

Transmission Type Manual, 4-Speed
Clutch Type Automatic Multi-Plate Clutch

Description

Built for riders ready to explore beyond the everyday. It’s a bike designed for those who want to break from the ordinary commute, combining an adventure-ready build with the kind of versatility that makes every ride feel like a new route worth taking.
